LIQUID PRODUCT

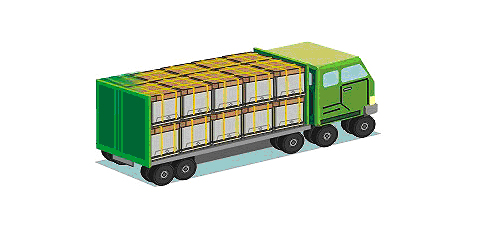

Transportation

Capable of shipping 20 PAPERIBC in a 20' ocean freight container.Extremely popular ofr exporting shipments to countries where environmental laws are strictly observed.

PAPER IBC

PAPERIBC is an effective way for bulk liquid storage and could replace traditional storages such as steel or plastic drums, returnable totes and bottle-in-cage IBCs.All our PAPERIBC went through stringent quality assurance where highest quality standard, safety and hygiene are observed. The PAPERIBC is able to carry upto 1000 liters of non-hazardous products, it reduces filling or discharging, handling costs and free up storage space while transporting of bulk liquid.
Easy to Set Up
Requires only one person per minute to prepare the PAPERIBC container for filling. No special training is required for setting up the container.
High Strength
PAPERIBC offers compression strength from 8 to 10 tons and is capable of stacking 3 high thus increasing storage efficiency.
Environmentally Friendly
The materials used to make PAPERIBC are completely recyclable, biodegradable andwaste-to-energy efficient. The objective is to minimize environmental pollutions and cause less contamination and harm to our environment.

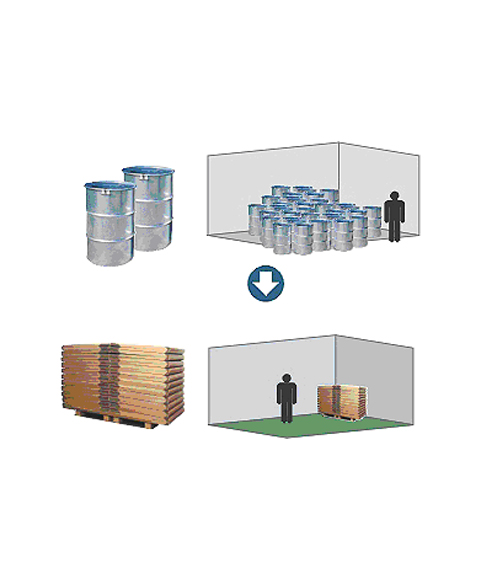

Save Storage Space by 80% and more
PAPERIBC can carry 20% more product than drums for the same amount of space. When they are not in use, PaperIBC is collapsible and stored flat in 80% less space than empty drums.

Easy to SET UP

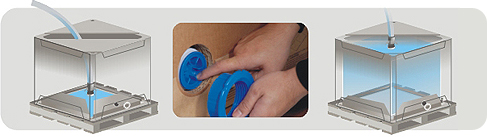

How to Assemble the PAPER IBC

  • 1. Put the box on the pallet
  • 2. Put the cassette liner into the box

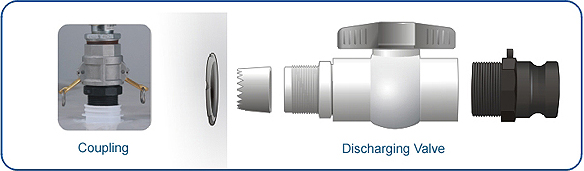

  • 3. Tighten the outlet value with the fastener and begin the filling process
Filling & Discharging

Size For Liquid

Capacity 1000 L  800L (Reefer) 1100 L  1000 L
Outer Dimension 1090 x 1090 x1000 mm  1040 x 1040 x 920 mm  1130 x 1110 x1025mm  1195 x 995 x1000 mm
Inner Dimension 1000 x 1000 x 1000 mm 950 x 950 x 920 mm 1040 x 1020 x 1025mm 1105 x 905 x 1000 mm
Thickness 45mm  45mm  45mm  45mm
Net weight Approx.27kg Approx.24kg Approx.29kg Approx.27kg
( without pallet) ( without pallet) ( without pallet) ( without pallet)

Suitable to:

  • CHEMICAL

    Chemical Adhesives, Cleaners, Coolant, Emulsions, Inks, Latex, Lubricants, Oils & Greases, Shampoo& Detergents, Epoxy Resins.

  • FOOD

    Food Sauce, Beverages Concentrates, Buttermilk, Citrus Juice, Edible Oils, Milk Products, Sour Cream, Soy Products, Sweeteners, Vinegar, Glucose.

  • Non-hazardous Liquid
